At first glance, a working-dog harness is a relatively simple piece of equipment. A few straps, a buckle, a connection point and a handle. But when that equipment is intended for patrol work, tracking, apprehension, search and rescue, or vertical operations, the way those components are arranged becomes just as important as the strength of the materials themselves.
Modern Icon K9 harnesses were designed around the requirements of working dogs. That starts with one fundamental distinction: our K9 harnesses are true harnesses rather than vest-style carriers.
A vest covers a significant portion of the dog’s torso. That can be useful when the primary objective is providing a large attachment platform, but additional material also adds weight, retains more heat and can interfere with movement depending on how the vest is constructed and fitted.
Our K9 harnesses take a different approach. The open architecture places structural webbing where it is needed while leaving much of the dog’s torso uncovered. This preserves freedom of movement, allows greater airflow around the dog and keeps the overall system relatively low-profile.
Table of Contents
Designing K9 Harnesses for a Dog Under Load
Many K9 harnesses are designed around reducing or discouraging pulling. Our working-dog harness has a very different objective.
During tracking, certain search applications, agitation work and apprehension training, a dog may be expected to work forward into line tension. Rather than attempting to eliminate that behavior, the harness needs to provide a stable and comfortable platform for the dog to pull against.
Instead of concentrating force around the dog’s neck, the harness transfers load through the chest and torso. The padded chest plate creates a broad contact surface at the front of the dog, while the wide structural webbing distributes that load around the body.
Strength is foundational to that design. The harness has to withstand the substantial dynamic forces generated by a powerful working dog, but that strength also has to be applied through a controlled load path. Tension from the lead is transferred through structural components and distributed across the harness while still allowing the dog to move and work naturally.
Mil-Spec Webbing
The primary structure of the harness is constructed from 1 3/4-inch mil-spec webbing rated to 7,000 pounds. It is the same type of heavy-duty webbing used in military aviation and parachute-harness applications.
There are two reasons for using such substantial webbing.
The obvious one is strength. Working-dog equipment gets pulled, dragged, soaked, covered in mud and repeatedly loaded. The webbing provides an exceptionally strong and durable structural foundation that is also quick drying and resistant to mold and mildew.
The less obvious advantage is width.
A narrow strap concentrates load over a smaller area. The 1 3/4-inch webbing creates a wider, more stable platform against the dog’s body. Combined with the padded center chest plate, this helps distribute the forces generated when a dog works against the harness rather than concentrating them into a narrow strap.
The webbing can feel relatively stiff when new. That is intentional. The material provides structure to the harness and becomes more supple as it is used without giving up the characteristics that make it suitable for demanding working environments.
Structural Hardware
A fully adjustable harness creates another engineering problem: once the harness has been fitted, those adjustments need to stay where they were placed.
Modern Icon K9 harnesses use metal adjusters at critical adjustment points. When the system is loaded, tension through the webbing and hardware provides the mechanical retention that maintains the adjustment.
The hook-and-loop found on the harness should therefore not be confused with the structural retention system. Its purpose is primarily strap management. Once a strap has been properly adjusted, the excess webbing can be secured neatly against the harness rather than leaving loose tails that can snag on vegetation, equipment or obstacles.
Proper adjustment is particularly important. The harness should fit snugly enough that the structure remains correctly positioned when force is applied while still allowing the dog to breathe and move normally.
Structural Hardware
A fully adjustable harness creates another engineering problem: once the harness has been fitted, those adjustments need to stay where they were placed.
Modern Icon K9 harnesses use metal adjusters at critical adjustment points. When the system is loaded, tension through the webbing and hardware provides the mechanical retention that maintains the adjustment.
The hook-and-loop found on the harness should therefore not be confused with the structural retention system. Its purpose is primarily strap management. Once a strap has been properly adjusted, the excess webbing can be secured neatly against the harness rather than leaving loose tails that can snag on vegetation, equipment or obstacles.
Proper adjustment is particularly important. The harness should fit snugly enough that the structure remains correctly positioned when force is applied while still allowing the dog to breathe and move normally.
Metal Quick-Release Buckles
The quick-release buckles used on the harness platform are not ordinary plastic side-release buckles.
The Patrol and Tracking K9 Harnesses utilize ISC 1 3/4-inch Klick-Lock buckles strength rated to 4,000 pounds. The release mechanism is redundant: both release points must be deliberately depressed, and the buttons are recessed to reduce the possibility of an accidental release.
The Rappelling Harness takes the system a step further with AustriAlpin COBRA® ProStyle buckles, also strength rated to 4,000 pounds, as part of the upgraded hardware package required for its vertical-operations role.
The result is a system that combines the speed of a quick-release buckle with hardware appropriate for much more demanding applications than a conventional dog harness.
An Integrated, Low-Profile Handle
Every K9 harness includes an integrated control handle running parallel with the dog’s body.
A tall handle that permanently projects away from the dog is easy to grab, but it also creates a potential snag point when the dog moves through thick vegetation, confined spaces, vehicles or structures. Keeping the handle close and parallel to the dog’s back reduces that profile while still giving the handler a substantial control point when needed.
On the Patrol Harness, the handle is meant to give the handler close control of the dog. With the addition of the rear chest strap on the Tracking and Rappelling platforms, the handle can also be used to lift or carry the dog suitcase-style.
Accessory Integration
Loop-covered MOLLE panels on both sides of the harness provide space for hook-backed identification while also allowing compatible pouches and accessories to be mounted directly to the harness.
An additional 1-inch accessory loop is positioned at the apex of the shoulder blades. This location is useful for equipment such as GPS trackers, lights, identification or other accessories designed to interface with 1-inch webbing.
Elastic chemlight retainers are also incorporated into both sides of the harness for low-light operations. In addition to simply marking the dog, handlers can use different colored chemlights on the left and right sides. At distance or in darkness, that gives the handler an immediate visual reference for both the dog’s location and orientation.
One Platform, Three K9 Harnesses
The Patrol, Tracking and Rappelling K9 Harnesses are all based on the same fundamental architecture. Looking at the front half of each harness, the family resemblance is obvious. The differences begin as the requirements of the application increase.

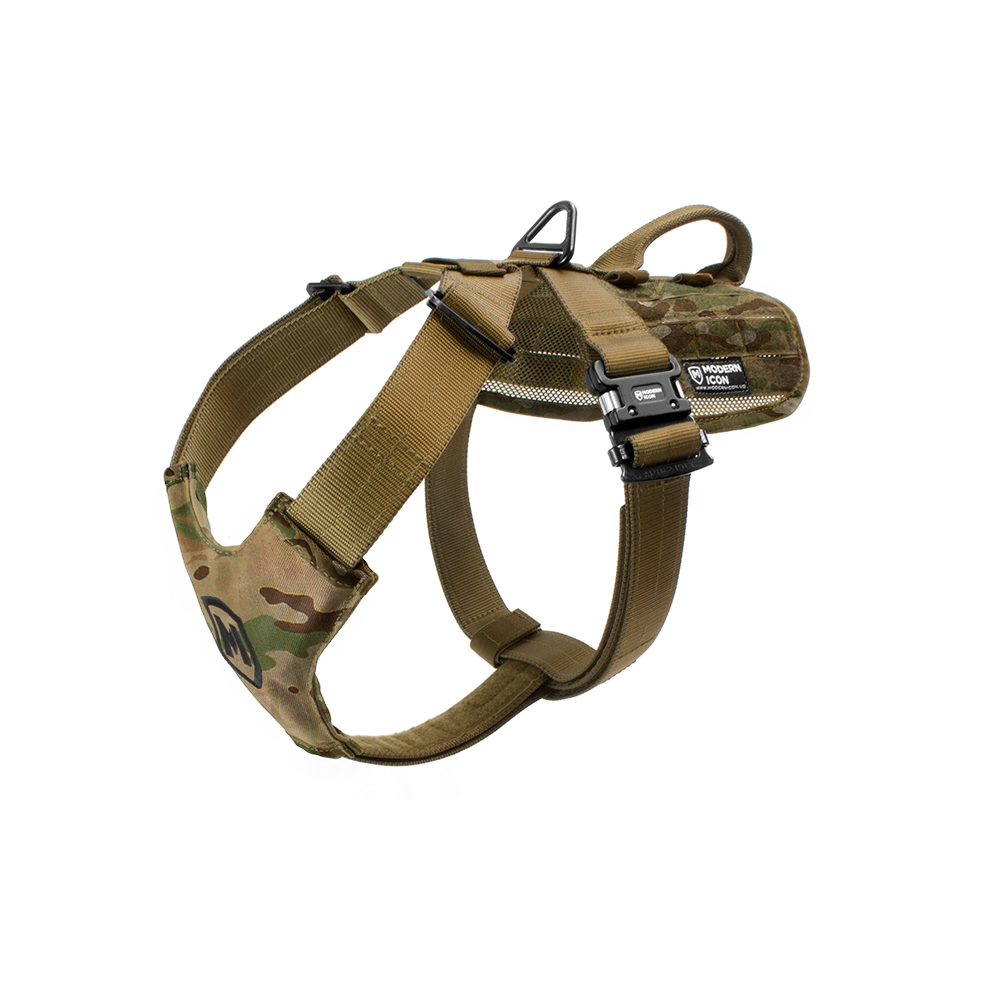

Patrol Harness
The Patrol Harness is the simplest and lightest configuration.
It is designed primarily for applications where the dog is working on a lead, including patrol, interdiction and agitation work. It retains the core harness architecture, padded chest plate, control handle, accessory mounting and heavy-duty hardware without adding unnecessary material behind the front chest strap.
Because there is no second chest strap behind the rib cage, the Patrol Harness is not designed as a secure lifting or suspension harness. For applications where those capabilities are unnecessary, its simplicity is one of its greatest strengths.

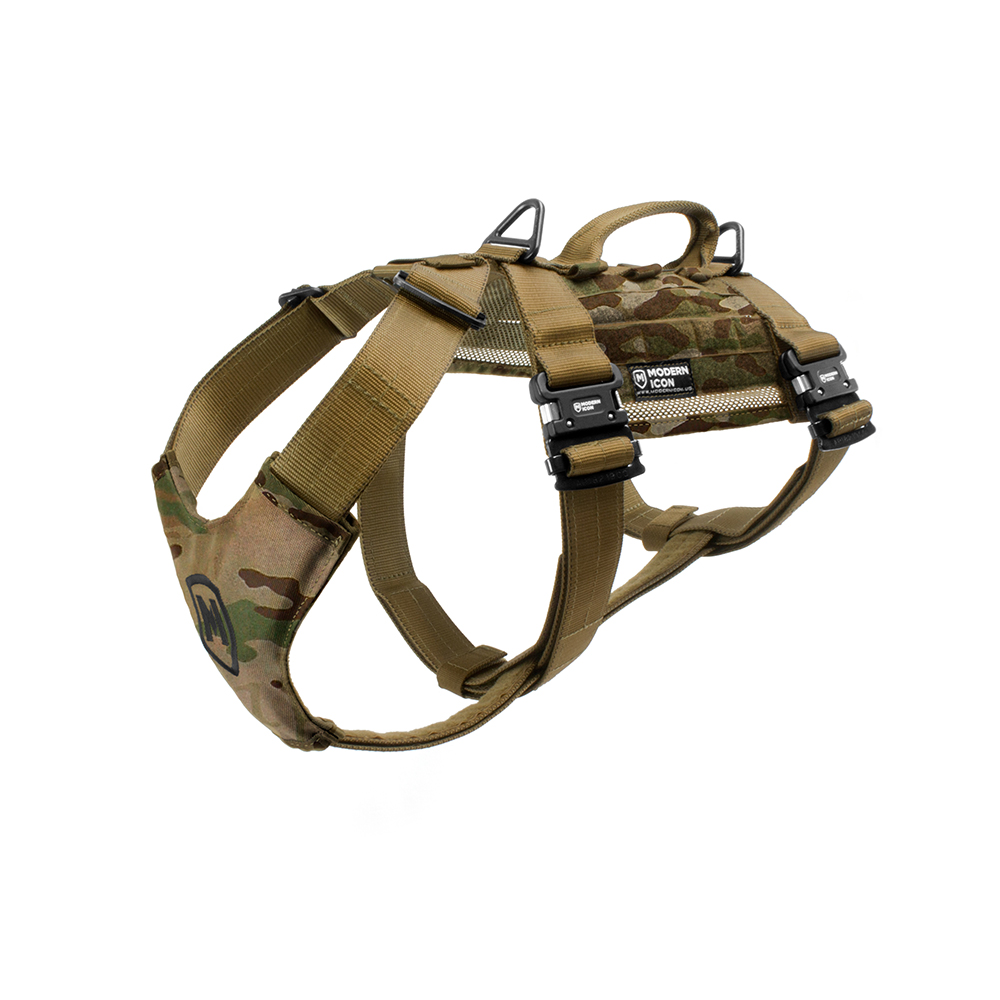

Tracking Harness
The Tracking Harness builds directly on the Patrol platform by adding a second chest strap behind the dog’s rib cage. That seemingly simple addition changes the capabilities of the harness significantly.
First, it makes the harness extremely difficult for the dog to back out of.
Second, the additional body support allows the handler to lift or assist the dog over obstacles and carry the dog by the harness when necessary.
Finally, the Tracking Harness adds a rear V-ring attachment point. During tracking, clipping the lead farther back on the harness allows the line to follow the dog’s body while the dog works with its head down.
When tension develops in the line, the rear connection reduces the tendency to pull upward on the front of the harness or interfere with the dog’s working position.
For many handlers, the Tracking Harness represents the most versatile version of the platform because it adds security and lifting capability without moving into a dedicated life-safety harness.
It is important to note, however, that the Tracking Harness is not rated for climbing, rappelling or rescue suspension.

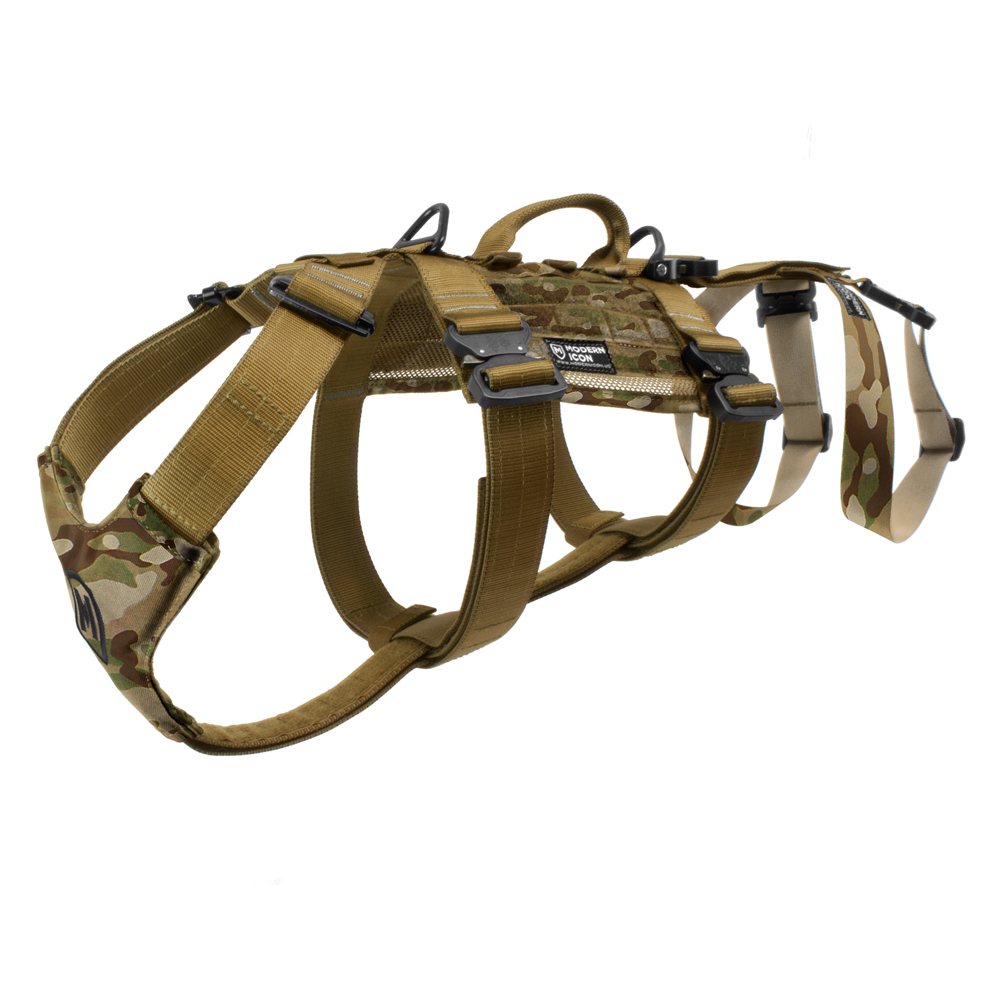

Rappelling Harness
The Rappelling Harness takes the Tracking Harness architecture and rebuilds it for vertical applications.
It was developed for specialized Military Working Dog, SWAT and Search and Rescue operations where a K9 may need to be raised, lowered, rappelled or transported during helicopter and rope-access operations.
The hardware and construction are upgraded accordingly. The harness uses AustriAlpin COBRA® ProStyle buckles, dedicated strength-rated attachment hardware and stitching appropriate to its intended life-safety application.
The most visible addition is the removable rear leg assembly.
During extended suspension, simply supporting a dog around the torso leaves the hindquarters unsupported, which can compromise the dog’s body position and increase the risk of breathing, circulation and suspension-related problems. The rear leg straps create additional support beneath the dog’s rear legs and help maintain a more appropriate body position while suspended.
Once the vertical portion of an operation is complete, the leg assembly can be quickly removed. What remains is essentially the familiar Tracking Harness configuration, allowing the same harness to transition from insertion or extraction directly into ground operations without changing equipment.
The Rappelling Harness is specialized life-safety equipment and is intended for trained, expert users familiar with K9 vertical operations.
Built Around the Job
All three K9 harnesses begin with the same basic requirements: exceptional strength, durable materials, secure metal hardware and a design that allows a working dog to perform under load. From there, each version adds only what is necessary for its intended application.
The 7,000-pound webbing and 4,000-pound buckles provide strength far beyond the loads normally encountered in working-dog applications, but the numbers are only useful because the rest of the harness is designed around them. The width and placement of the webbing distribute force across the dog, the hardware maintains adjustment under tension, the low-profile architecture preserves mobility, and each attachment point is positioned for a specific job.
That approach has remained consistent throughout the development of the Modern Icon harness platform: build the harness from exceptionally strong components, eliminate unnecessary material, and design every remaining component around the way a working dog actually works.
